NOUVEAU CHIPSET B550 AVEC PRISE EN CHARGE DU PCIE 4.0

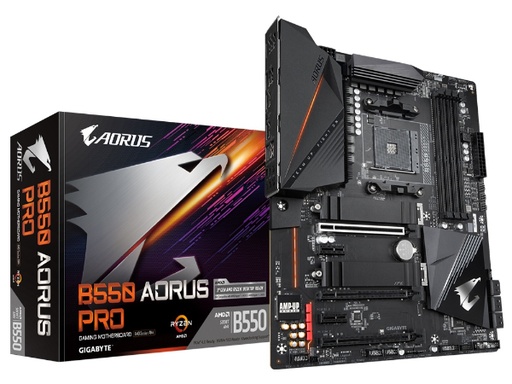

Modèle : B550 AORUS PRO
CPU : AMD Socket AM4 - Support AMD Ryzen 3e génération
ATTENTION : Non compatible avec les CPU serie G (Ryzen 3 3200G / Ryzen 5 3400G non compatible)
Chipset : AMD B550
Mémoire : 4x DDR4 DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133
Max : 128Go
Audio : Realtek ALC1220-VB - Sortie S/PDIF - Canaux 2/4/5.1/7.1
LAN : Realtek 2.5GbE LAN (2.5Gb/1Gb/100Mb)
Slot extension : 3x PCIe X16 - 2x PCIe x1
Stockage : 2x M.2 - 6x SATA + RAID
Interface interne :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
Connecteur arrière : 1 x HDMI port - 3 x USB 3.2 Gen 1 ports
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red) - 6 x USB 2.0/1.1 ports
1 x Q-Flash Plus button - 1 x RJ-45 port
1 x optical S/PDIF Out connector - 5 x audio jacks
BIOS : 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SE : Windows 10 64-bit
Form factor : ATX Form Factor - 30.5cm x 24.4cm
